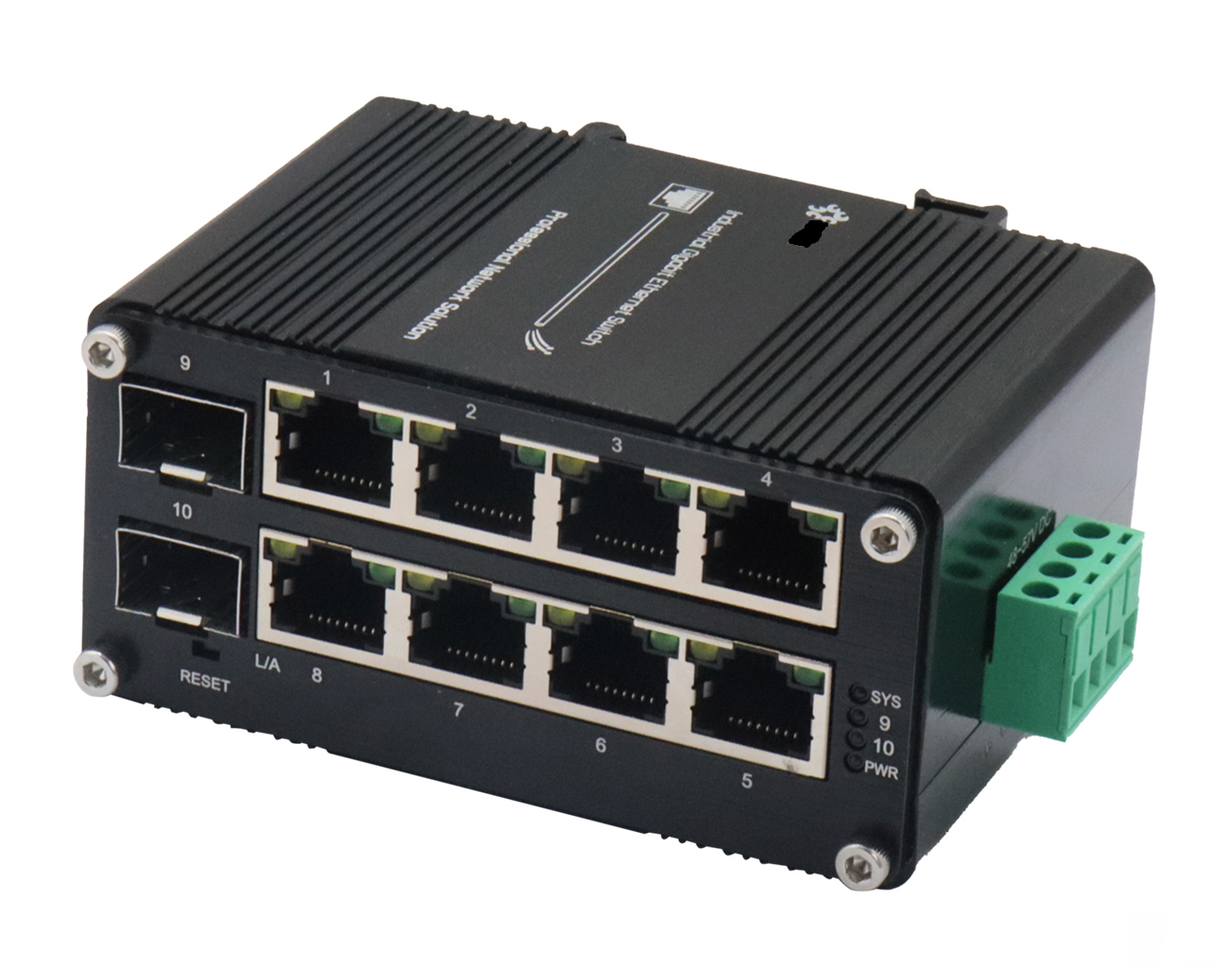

Switch LAN Mini Industrial Managed mod. 8SW-208SG-SFP, 8-Port 10/100/1000T + 2-Port 100/1000X SFP

Name: Switch LAN Mini Industrial Managed mod. 8SW-208SG-SFP, 8-Port 10/100/1000T + 2-Port 100/1000X SFP
Brand: 8 System
Availability: InStock

€0,00

Spedizione calcolata al momento del checkout.

Spedizione in 24h

- fino a 48h per isole e zone disagiate
- solo corriere espresso
- tracking automatico per seguire la tua spedizione
- assistenza dedicata

Resi e assicurazione

- Reso entro 14gg, gratuito per prodotti danneggiati, sbagliati o non conformi
- Possibilità di assicurare le spedizioni, su richiesta

Pagamenti sicuri

Metodi di pagamento accettati

- Carta di credito (Visa, Mastercard, Amex)
- PayPal e prepagate
- Bonifico bancario

🖨️ Salva come PDF

Datasheet
Disegno

Descrizione

► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports WEB Management

► Supports 802.3x Flow Control

8SW-208SG-SFP, managed industrial network switch, with 8 ports 10/100/1000Base-TX + 2 ports 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features

► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports WEB Management

► Supports 802.3x Flow Control

► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode

► Support IEEE 802.3D/W/S standard STP protocol

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature.

Specification :

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC,Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F9~F10
Dimensions (WxDxH):	95 x 63 x 46 mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP
Multicast Support	Support IGMP Snooping V1/V2/V3
VLAN	Support IEEE 802.1Q 4K VLAN
QOS	Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	WEB
Security	Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
